上海佳裕阀门厂家生产:

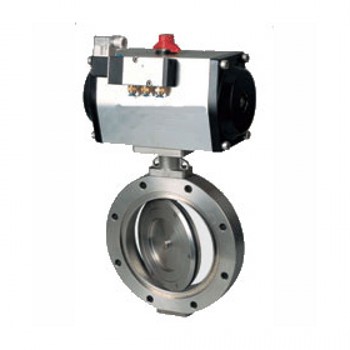

GIQ气动真空蝶阀

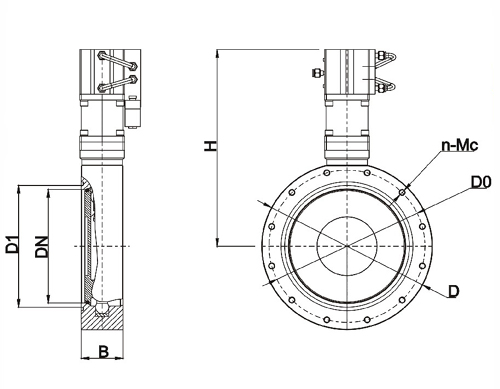

型号 |
DN |
D |
D0 |
B |
N |
C |
H |
L |
E |
GIQ-32 |
32 |
90 |
70 |
22 |
4 |
9 |
187 |
158 |
58 |
GIQ-40 |
40 |
100 |
80 |
22 |
4 |
9 |
197 |
158 |
58 |
GIQ-50 |
50 |
110 |
90 |
22 |
4 |
9 |
207 |
158 |
58 |
GIQ-63 |
63 |
130 |
110 |
28 |
4 |
9 |
227 |
158 |
58 |
GIQ-80 |
80 |
145 |
125 |
28 |
8 |
9 |
242 |
158 |
58 |
GIQ-100 |
100 |
165 |
145 |
28 |
8 |
9 |
262 |
158 |
58 |
GIQ-125 |
125 |
200 |
175 |
34 |
8 |
11 |
323 |
172 |
70 |
GIQ-160 |
150 |
225 |
200 |
34 |
8 |
11 |
348 |
172 |
70 |
GIQ-200 |
200 |
285 |
260 |
40 |
12 |
11 |
450 |
197 |
97 |
GIQ-250 |
250 |
335 |
310 |
45 |
12 |
11 |
525 |
248 |
117 |
GIQ-320 |
300 |
425 |
395 |
50 |
12 |
14 |
622 |
248 |
117 |
GIQ-400 |
400 |
510 |
480 |
60 |
16 |
14 |
733 |
295 |
138 |
GIQ-500 |
500 |
610 |
580 |
70 |
16 |
14 |
900 |
360 |
159 |
GIQ-600 |
600 |
750 |
720 |
80 |
20 |
14 |
980 |
370 |
174 |
GIQ-800 |
800 |
920 |
890 |
100 |
24 |
14 |
1220 |
410 |
240 |
GIQ-1000 |
1000 |
1120 |
1090 |
120 |
32 |
14 |
1594 |
580 |
300 |
GIQ-1250 |
1250 |
1440 |
1404 |
150 |
36 |
19 |
2050 |
736 |
390 |
型号 |
DN |
D |
D0 |
B |
N |
C |
H |
L |
E |
GIQ-32 |
32 |
78 |
64 |
22 |
4 |
7 |
175 |
134 |
58 |
GIQ-40 |
40 |
85 |
70 |
22 |
4 |
7 |
183 |
147 |
58 |
GIQ-50 |
50 |
110 |
90 |
22 |
4 |
9 |
207 |
170 |
58 |
GIQ-63 |
63 |
125 |
105 |
28 |
4 |
9 |
222 |
187 |
58 |
GIQ-80 |
80 |
145 |
125 |
28 |
4 |
9 |
243 |
212 |
58 |
GIQ-100 |
100 |
170 |
145 |
28 |
4 |
12 |
268 |
244 |
58 |
GIQ-125 |
125 |
195 |
170 |
34 |
4 |
12 |
318 |
280 |
70 |
GIQ-150 |
150 |
220 |
195 |
34 |
8 |
12 |
343 |
317 |
70 |
GIQ-200 |
200 |
275 |
250 |
40 |
8 |
12 |
440 |
396 |
97 |
GIQ-250 |
250 |
330 |
300 |
45 |
8 |
14 |
520 |
467 |
117 |
GIQ-300 |
300 |
380 |
350 |
50 |
8 |
14 |
570 |
546 |
117 |
GIQ-400 |
400 |
500 |
465 |
60 |
8 |
18 |
720 |
695 |
138 |
GIQ-500 |
500 |
600 |
565 |
70 |
12 |
18 |
890 |
360 |
159 |
GIQ-600 |
600 |
710 |
670 |
80 |
12 |
20 |
960 |
370 |
174 |
GIQ-800 |
800 |
920 |
880 |
100 |
20 |
21 |
1220 |
410 |
240 |
GIQ-1000 |
1000 |
1140 |
1090 |
120 |
24 |
23 |
1604 |
580 |
300 |
